Haccpper Device

Home　＞　Haccpper Device
Micro generation device
Micro generation
device
Small generation device
Small generation
device
Large generation device
Large generation
device
Plant Model
Plant Model
Spraying equipment/Optional
Spraying equipment/Optional
All functional water can be generated
Universal Equipment Lineup
All-purpose device that can generate all functional water
  • Manufacture and sale of various types of Hasepper generation systems
  • Manufacture and sale of various hypochlorous acid concentration systems
  • Manufacture and sales of various space spraying systems
Simple to plant type specification equipment
  • Automatic correction specification device with density sensor
  • 24-hour continuous plant specification equipment
  • Trial specification device
Small to large flow rate generation specification equipment
  • 400～7200L/hour
  • 14000～28000L/hour(Special order)
Low to high concentration specification equipment
  • 0ppm～200ppm
  • 200ppm～1000ppm(Special order)
A wide variety of options
  • Automatic chemical replenishment system
  • Calendar timer automatic spraying system
  • Automatic buffer tank refilling system
  • Generation of hypochlorous acid water (ph 4.5 to 7.0)
  • Generation of strongly acidic water (pH 1.5 to 4.5)
  • Generation of strongly alkaline water (ph 7.0 to 8.5)

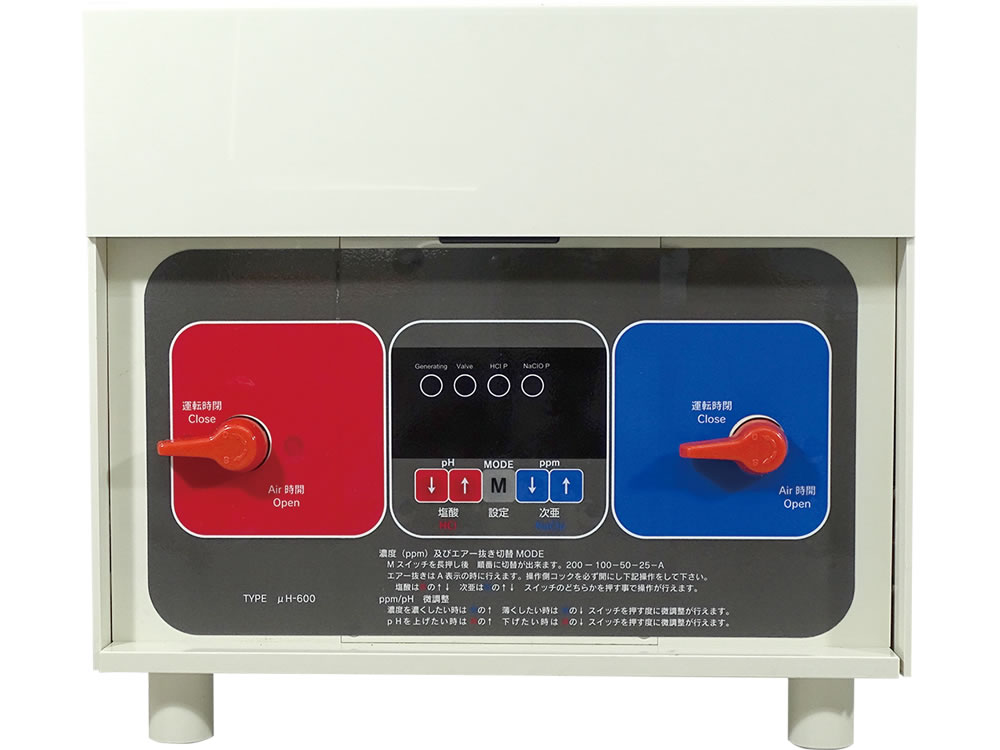

Micro generation device

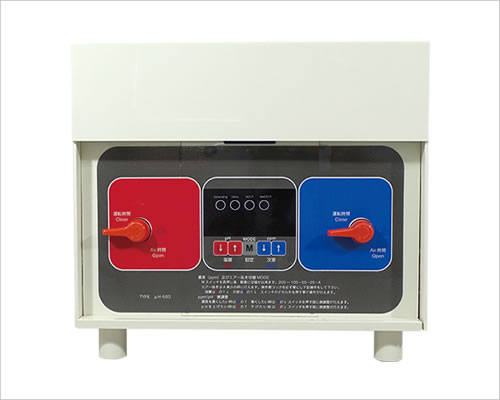

【Micro generation device】μH-600カートリッジ
Model
μH-600 Cartridge
Dimensions
W:300mm, D:200mm, H:280mm
Production
10 liter/minute, 600 liter/hour
concentration
4 types: 25,50,100,200 ppm
operation
Sheet switch type
liquid medicine
OEM specifications
water supply
13 faucets, 2 m hose for washing machine
water supply pipe
16mm diameter, cock with hose mouth
power
AC100/240V single phase, 2.5m plug
option
Colorimeter, digital pH meter, auxiliary buffer tank, level sensor, automatic valve
operational condition
Water supply pipe, no extension connection

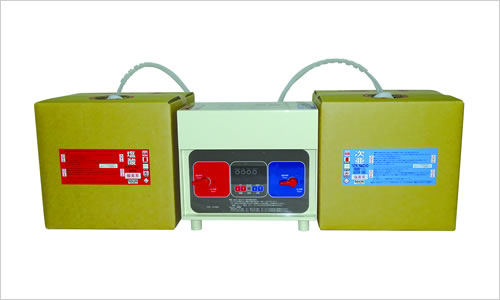

【Micro generation device】μH-600-QB
Model
μH-600-QB
Dimensions
W:300mm+QB, D:200mm, H:280mm
Production
10 liter/min, 600 liter/hour
concentration
4 types: 25,50,100,200 ppm
operation
Sheet switch type
liquid medicine
5L-20L, QB external, refillable
water supply
13 taps, washing machine hose 2 m
water supply pipe
16mm diameter, with hose mouth Cock
power
AC100/240V single phase, 2.5m plug
option
Colorimeter, digital pH meter, auxiliary buffer tank, level sensor, automatic valve
operational condition
Water supply pipe, no extension connection

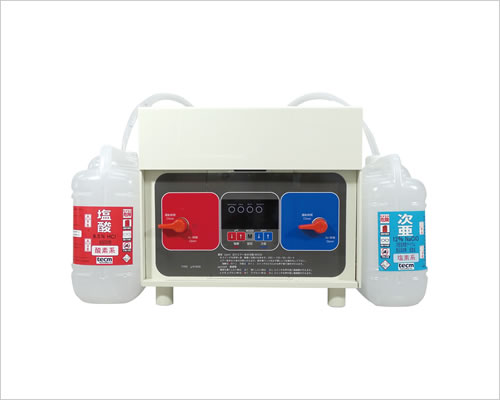

【Micro generation device】μH-600-T
Model
μH-600-T
Dimensions
W:300mm + tank, D:200mm, H:280mm
Production
10 liter/min, 600 liter/hour
concentration
4 types: 25,50,100,200 ppm
operation
Sheet switch type
liquid medicine
3L-5L, external tank, exchangeable
water supply
13 taps, washing machine hose 2 m
water supply pipe
16mm diameter, with hose mouth Cock
power
AC100/240V single phase, 2.5m plug
option
Colorimeter, digital pH meter, auxiliary buffer tank, level sensor, automatic valve
operational condition
No faucet, no extension connection

Small generation device

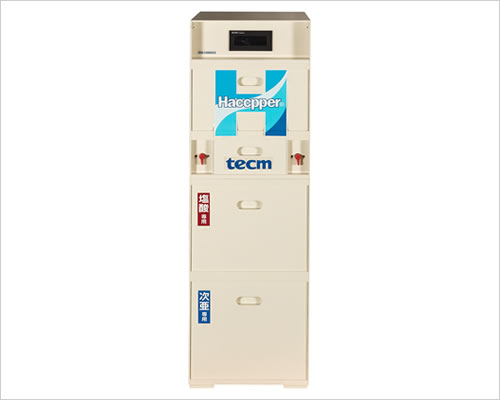

【Small generation device】FH-1200V1-QB
Model
FH-1200V1-QB
Dimensions
W:400mm, 450mm, H:1335mm
Production
1200L/hour
concentration
6 kinds of switching (optional)
operation
Small touch panel
liquid medicine
Hypochlorous QB 20L, Hydrochloric acid 10L, exchangeable
water supply
VP20（TS継手）
water supply pipe
VP20, faucet
power
AC100/240V single phase, 2.5m plug
signal
Liquid medicine out, abnormal signal
option
Colorimeter, digital pH meter, auxiliary buffer tank, level sensor, automatic valve
operational condition
water supply pipe (piping connection possible)

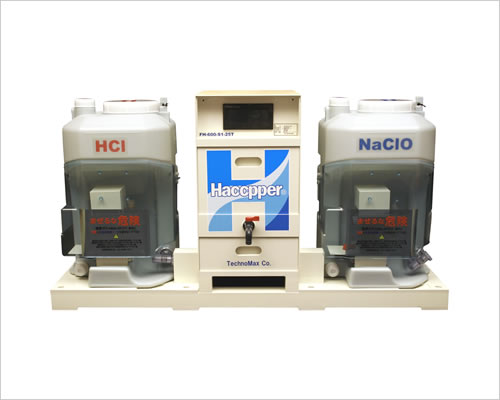

【Small generation device】FH-1200S1-25T
Model
FH-1200S1-25T
Dimensions
W:1200mm, 350mm, H:636mm
Production
1200L/hour
concentration
6 kinds of switching (optional)
operation
Small touch panel
liquid medicine
Hypochlorous 25L, Hydrochloric acid 25L, refillable
water supply
VP20 (TS joint)
water supply pipe
VP20, faucet
power
AC100/240V single phase, 2.5m plug
signal
Liquid medicine out, abnormal signal
option
Colorimeter, digital pH meter, auxiliary buffer tank, level sensor, automatic valve
operational condition
water supply pipe (piping connection possible)
【Small generation device】FH-3600S1-50T
Model
FH-3600S1-50T
Dimensions
W:1500mm, 500mm, H:908mm
Production
3600L/hour
concentration
6 kinds of switching (optional)
operation
Small touch panel
liquid medicine
Hypochlorous 50L, Hydrochloric acid 50L, refillable
water supply
VP30 (TS joint)
water supply pipe
VP20, faucet
power
AC100/240V single phase, 2.5m plug
signal
Liquid medicine out, abnormal signal
option
Colorimeter, digital pH meter, auxiliary buffer tank, level sensor, automatic valve
operational condition
water supply pipe (piping connection possible)

Large generation device

【Large generation device】PP-1200S2/S3
Model
PP-1200S2/S3
Dimensions
W:1500mm, 500mm, H:963mm
+Tower light: 137mm
Production
20L/min, 1200L/hour
concentration
6 types
Low concentration (0-50), medium concentration (0-100), high concentration (0-200), other special concentration ~1000ppm
pH
Acidic 1.5-4.5, sterilized water 4.5-7.0, alkaline water 7.0-8.5
operation
Large touch panel
liquid medicine
50L tank refill type
water supply
VP20 JIS-TS joint
water supply pipe
VP20 JIS-TS joint
power
AC100/240V single phase
signal
leak, liquid medicine shortage, liquid medicine out, pH warning, pH abnormality
option
[Buffer tank & water pump]
1000L, 43L/minx24mH, AC200V 3 phase, +level switch, pneumatic automatic ball valve

[System]
Automatic pH correction function, hypochlorous acid concentration meter (S3 type if equipped), automatic spray control, automatic liquid medicine supply, PC data management software, measuring instrument, colorimeter, digital pH meter

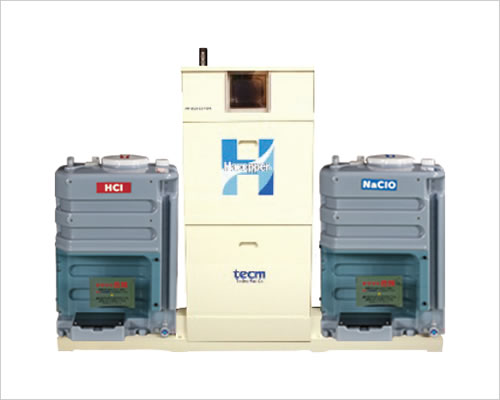

【Large generation device】PP-3600S2/S3
Model
PP-3600S2/S3
Dimensions
W:1900mm, 600mm, H:1263mm
+Tower light: 137mm
Production
60L/min, 3600L/hour
concentration
6 types
Low concentration (0-50), medium concentration (0-100), high concentration (0-200), other special concentration ~1000ppm
pH
Acidic 1.5-4.5, sterilized water 4.5-7.0, alkaline water 7.0-8.5
operation
Large touch panel
liquid medicine
100L tank refill type
water supply
VP30 JIS-TS joint
water supply pipe
VP30 JIS-TS joint
power
AC100/240V single phase
signal
leak, liquid medicine shortage, liquid medicine out, pH warning, pH abnormality
option
[Buffer tank & water pump]
3000L, 160L/minx27mH, AC200V 3 phase, +level switch, pneumatic automatic ball valve

[System]
Automatic pH correction function, hypochlorous acid concentration meter (S3 type if equipped), automatic spray control, automatic liquid medicine supply, PC data management software, measuring instrument, colorimeter, digital pH meter

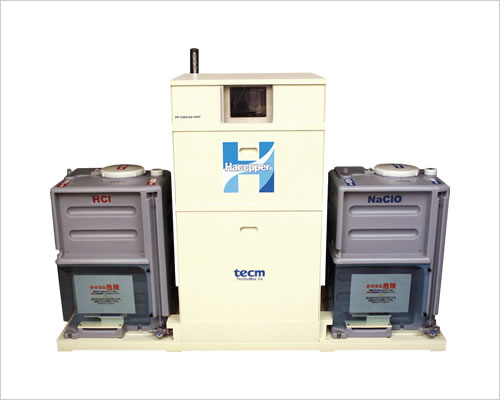

【Large generation device】PP-3600S2/S3
Model
PP-7200S2/S3
Dimensions
W:2000mm, 700mm, H:1363mm
+Tower light: 137mm
Production
120L/min, 7200L/hour
Low concentration 14400L/hour with specification
concentration
6 types
Low concentration (0-50), medium concentration (0-100), high concentration (0-200), other special concentration ~1000ppm
pH
Acidic 1.5-4.5, sterilized water 4.5-7.0, alkaline water 7.0-8.5
operation
Large touch panel
liquid medicine
100L tank refill type
water supply
VP50 JIS-TS joint
water supply pipe
VP50 JIS-TS joint
power
AC100/240V single phase
signal
leak, liquid medicine shortage, liquid medicine out, pH warning, pH abnormality
option
[Buffer tank & water pump]
3000L, 180L/minx31mH, AC200V 3 phase, +level switch, pneumatic automatic ball valve

[System]
Automatic pH correction function, hypochlorous acid concentration meter (S3 type if equipped), automatic spray control, automatic liquid medicine supply, PC data management software, measuring instrument, colorimeter, digital pH meter

We also accept requests for other custom-made and OEM products (production 14400L/h).
Please contact us for details.

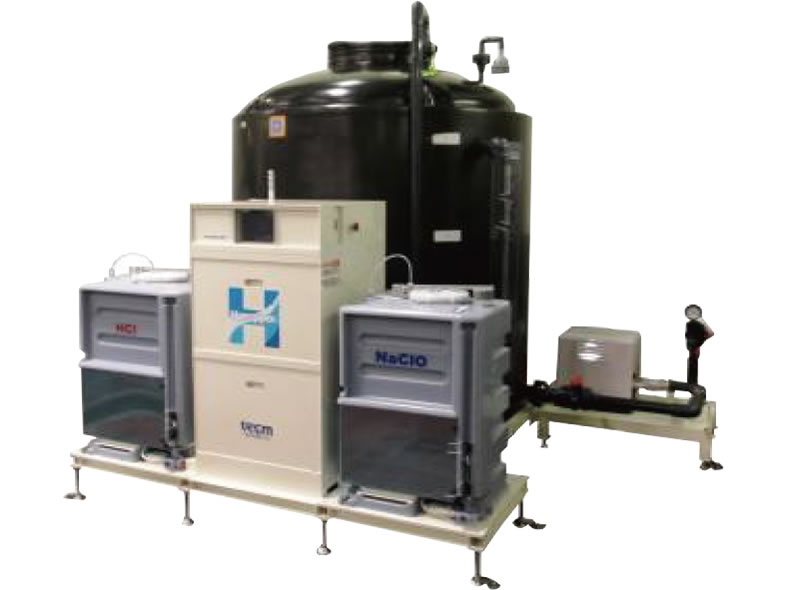

Plant Model

【Plant Model】PP-1200S2/S3
Model
PP-1200S2/S3
Dimensions
W:1500mm, 500mm, H:963mm
+Tower light: 137mm
Production
20L/min, 1200L/hour
concentration
6 types
Low concentration (0-50), medium concentration (0-100), high concentration (0-200), other special concentration ~1000ppm
pH
Acidic 1.5-4.5, sterilized water 4.5-7.0, alkaline water 7.0-8.5
operation
Large touch panel
liquid medicine
50L tank refill type
water supply
VP20 JIS-TS joint
water supply pipe
VP20 JIS-TS joint
power
AC100/240V single phase
signal
leak, liquid medicine shortage, liquid medicine out, pH warning, pH abnormality
option
[Buffer tank & water pump]
1000L, 43L/minx24mH, AC200V 3 phase, +level switch, pneumatic automatic ball valve

[System]
Automatic pH correction function, hypochlorous acid concentration meter (S3 type if equipped), automatic spray control, automatic liquid medicine supply, PC data management software, measuring instrument, colorimeter, digital pH meter
【Plant Model】PP-1200S2/S3
Model
PP-3600S2/S3
Dimensions
W:1900mm, 600mm, H:1263mm
+Tower light: 137mm
Production
60L/min, 3600L/hour
concentration
6 types
Low concentration (0-50), medium concentration (0-100), high concentration (0-200), other special concentration ~1000ppm
pH
Acidic 1.5-4.5, sterilized water 4.5-7.0, alkaline water 7.0-8.5
operation
Large touch panel
liquid medicine
100L tank refill type
water supply
VP30 JIS-TS joint
water supply pipe
VP30 JIS-TS joint
power
AC100/240V single phase
signal
leak, liquid medicine shortage, liquid medicine out, pH warning, pH abnormality
option
[Buffer tank & water pump]
3000L, 160L/minx27mH, AC200V 3 phase, +level switch, pneumatic automatic ball valve

[System]
Automatic pH correction function, hypochlorous acid concentration meter (S3 type if equipped), automatic spray control, automatic liquid medicine supply, PC data management software, measuring instrument, colorimeter, digital pH meter
【Plant Model】PP-7200S2/S3
Model
PP-7200S2/S3
Dimensions
W:2000mm, 700mm, H:1363mm
+Tower light: 137mm
Production
120L/min, 7200L/hour
concentration
6 types
Low concentration (0-50), medium concentration (0-100), high concentration (0-200), other special concentration ~1000ppm
pH
Acidic 1.5-4.5, sterilized water 4.5-7.0, alkaline water 7.0-8.5
operation
Large touch panel
liquid medicine
100L tank refill type
water supply
VP50 JIS-TS joint
water supply pipe
VP50 JIS-TS joint
power
AC100/240V single phase
signal
leak, liquid medicine shortage, liquid medicine out, pH warning, pH abnormality
option
[Buffer tank & water pump]
3000L, 180L/minx31mH, AC200V 3 phase, +level switch, pneumatic automatic ball valve

[System]
Automatic pH correction function, hypochlorous acid concentration meter (S3 type if equipped), automatic spray control, automatic liquid medicine supply, PC data management software, measuring instrument, colorimeter, digital pH meter

We also accept requests for other custom-made products and OEM products (production 14000L/h, 28000L/h, etc.).
Please contact us for details.

Spraying equipment/Optional

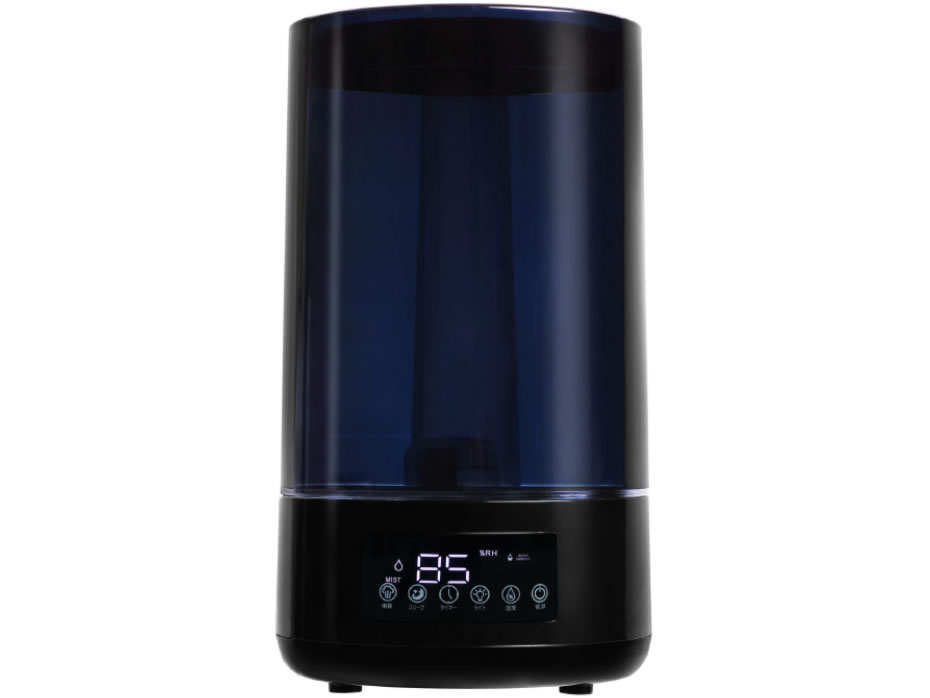

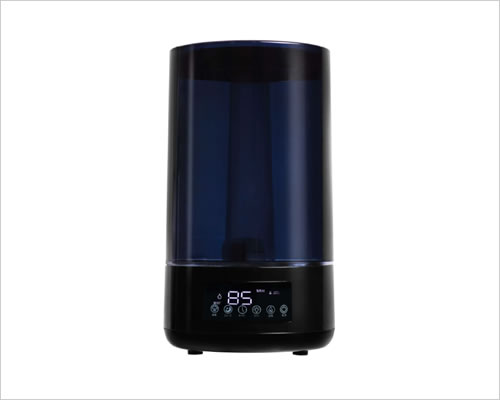

Compact ultrasonic sprayer

Compact ultrasonic sprayer
Model
US-300-C
Spray volume
Weak 90ml/H, Medium 180ml/H, Strong 300ml/H
Replenishment
Replenishment from the top of the tank
Tank capacity
4.3L
Humidity
45% to 90% humidity control in 5% increments
Timer function
1-12 hours powerOFF timer function
Light
LED moonlight function inside the tank
Sleep
Operation panel proof OFF function
Size
185Wx185Dx320H
power
100V 50-60Hz 25w

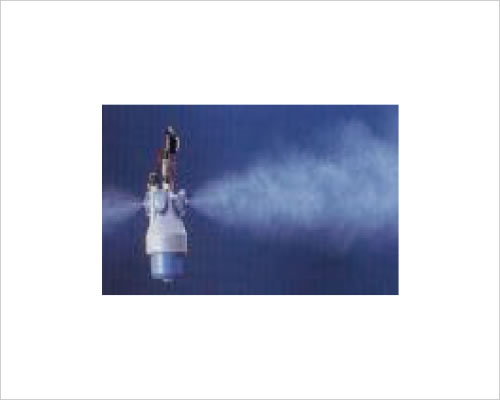

2Ultrasonic sprayers

Ultrasonic sprayers

Piping supply

2000mL/hour x number of nozzles
(Air 33mL/min x nozzles)

8000mL/hour
Atomizing 4 nozzles 1 unit

30 tsubo/unit intermittent spraying
Operation with multiple units

Medium ultrasonic sprayer

Medium ultrasonic sprayer
Model
US-1500-C
Spray volume
Weak 500ml/H, Medium 1000ml/H, Strong 1500ml/H
Replenishment
Replenishment from the top of the tank
Tank capacity
16L
Humidity
40% to 90% humidity control in 5% increments
Timer function
1 to 12 hours powerOFF timer function
Size
255Wx255Dx1050H with casters
Packing：300Wx300Dx610H
Weight
4.4kg

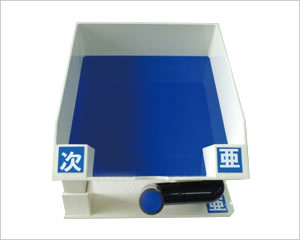

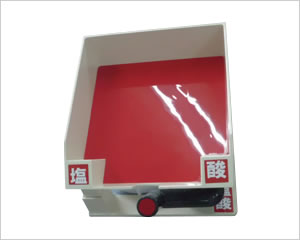

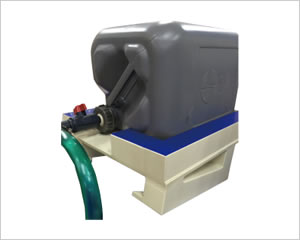

supply unit

supply unit
supply unit
supply unit
supply unit
supply unit
